Description
H.TO.2,0.30.Z2.R0,1.HA.ML4,0 TI2000 SOLID CARBIDE TORUS MILLING CUTTER T x = maximum engagement depth
Mat No: 5236232001, Article No: 5236232001
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
High performance end mill for hardened steel
R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features,or,optimizing complex surfacing.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | BLUSHREDR-2.000R0.10-4.00CTZ22.0-C19_5236232001 (0649760) | |
| EDP # | 0649760 | |
| Workpiece Material(s) | Steel (Blue) Hard/Tool Steel (Grey) | |
| Weight | 0.5 oz | 13 g |

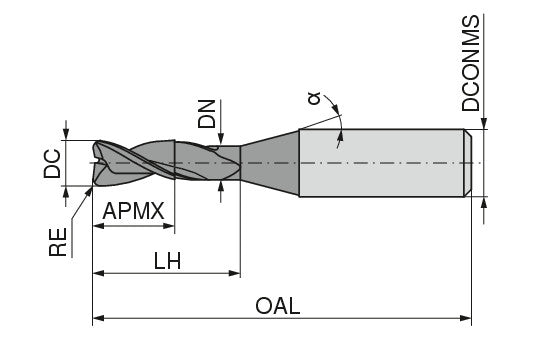

| Cutting diameter DC/d1 -0.008 | 0.0787 inch | 2 mm |
| Corner radius RE/r 0.005 | 0.0039 inch | 0.1 mm |
| Depth of cut maximum APMX/l2 | 0.0787 inch | 2 mm |
| Neck Diameter DN/d3 | 0.0752 inch | 1.91 mm |
| Head length LH/l3 | 0.1575 inch | 4 mm |
| Protruding length LPR/l5 | 0.8661 inch | 22 mm |
| Overall length OAL/l1 | 1.9685 inch | 50 mm |
| Alpha b | 16 | |
| Mounting spigot diameter DCONMS/d2 h5 | 0.1575 inch | 4 mm |
| Peripheral effective cutting edge count ZEFP/Z | 2 | |
Application & Properties:
Suitable Materials:
