GRYSTRIPR-3.000R1.50-5.00CTZ22.0-A19_5240403000 (0649769)


Price:
Sale price$52.08
Stock:
Re-stocking soon

Description

H.RD.3,0.30°.Z4.HA.K57 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-3.000R1.50-5.00CTZ22.0-A19_5240403000 (0649769)
EDP # 0649769
Workpiece Material(s) Steel (Blue)Hard/Tool Steel (Grey)
Weight 0.3 oz 8 g

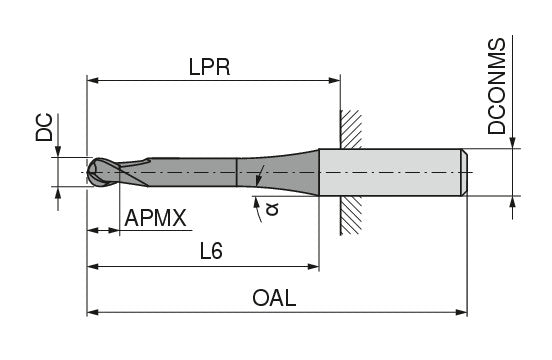

Cutting diameter DC/d1 f8 0.1181 inch 3 mm
Depth of cut maximum APMX/l2 0.1969 inch 5 mm
Protruding length LPR/l5 0.8661 inch 22 mm
Overall length OAL/l1 1.9685 inch 50 mm
Mounting spigot diameter DCONMS/d2 h6 0.1181 inch 3 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
