BLUGLIDER-0.200R0.00-0.50CTZ17.0-C17_5234530200 (0649772)


Price:
Sale price$65.24
Stock:
Re-stocking soon

Description

H.SC.0,2.30°.Z2.HA.ML0,3/0,5 TI2000 SOLID CARBIDE FINISH MILLING CUTTER T x = maximum engagement depth

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUGLIDER-0.200R0.00-0.50CTZ17.0-C17_5234530200 (0649772)
EDP # 0649772
Workpiece Material(s) Steel (Blue)Hard/Tool Steel (Grey)
Weight 0.4 oz 12 g

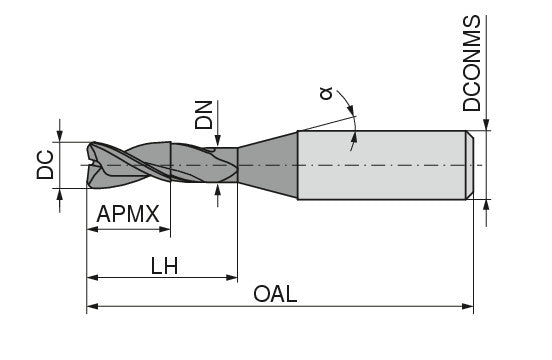

Peripheral effective cutting edge count ZEFP/Z 2
Cutting diameter DC/d1 -0,01 0.0079 inch 0.2 mm
Depth of cut maximum APMX/l2 0.0118 inch 0.3 mm
Neck Diameter DN/d3 0.0071 inch 0.18 mm
Head length LH/l3 0.0197 inch 0.5 mm
Protruding length LPR/l5 0.6693 inch 17 mm
Overall length OAL/l1 1.7717 inch 45 mm
Alpha b° 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
