H.SC.0,2.30°.Z2.HA.ML0,3/1,0 TI2000 SOLID CARBIDE FINISH MILLING CUTTER T x = maximum engagement depth
Mat No: 5234540200, Article No: 52345402
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

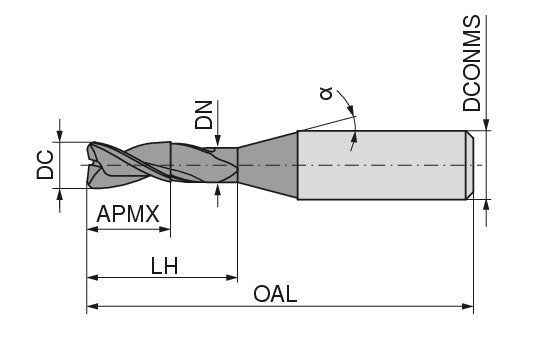

|Name||CERATIZIT H.SC.0,2.30°.Z2.HA.ML0,3/1,0 TI2000 SOLID CARBIDE FINISH MILLING CUTTER 5234540200 (0649773)|
|Workpiece Material(s)||All Materials (White)|
|Weight||0.4 oz||12.7 g|
|Cutting diameter DC/d1 -0.01||0.0079 inch||0.2 mm|
|Depth of cut maximum APMX/l2||0.0118 inch||0.3 mm|
|Neck Diameter DN/d3||0.0071 inch||0.18 mm|
|Head length LH/l3||0.0394 inch||1 mm|
|Protruding length LPR/l5||0.6693 inch||17 mm|
|Overall length OAL/l1||1.7717 inch||45 mm|
|Mounting spigot diameter DCONMS/d2 h5||0.1575 inch||4 mm|
Application & Properties:
