GRYCHIRPR-10.00R0.00-25.0CTZ33.0-K28_5213310000 (0649789)


Price:
Sale price$136.18
Stock:
Not in stock - Available to order

Description

H.SC.10,0.30.Z6.HA.L TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Mat No: 5213310000, Article No: 52133100

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all,and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYCHIRPR-10.00R0.00-25.0CTZ33.0-K28_5213310000 (0649789)
EDP # 0649789
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 2.9 oz 82 g

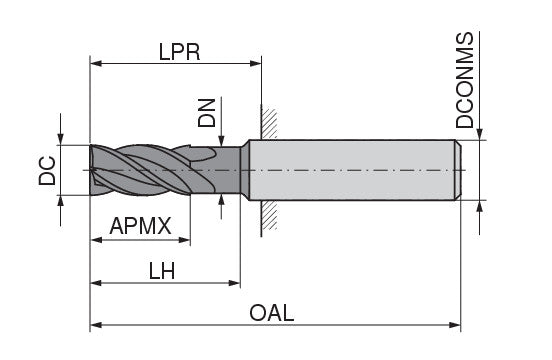

Cutting diameter DC/d1 e8 0.3937 inch 10 mm
Depth of cut maximum APMX/l2 0.9843 inch 25 mm
Protruding length LPR/l5 1.2992 inch 33 mm
Overall length OAL/l1 2.874 inch 73 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 6

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
