BLUCHIRPR-10.00R0.00-60.0CTZ60.0-K39_5234810000 (0649791)


Price:
Sale price$118.20
Stock:
Re-stocking soon

Description

H.SC.10,0.30°/45°.Z6.HA.ML25 TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUCHIRPR-10.00R0.00-60.0CTZ60.0-K39_5234810000 (0649791)
EDP # 0649791
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 4.0 oz 112 g

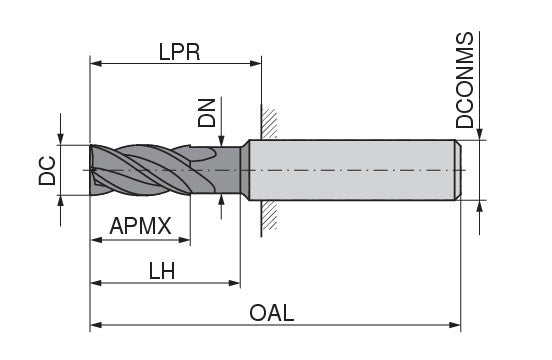

Cutting diameter DC/d1 e8 0.3937 inch 10 mm
Depth of cut maximum APMX/l2 0.9843 inch 25 mm
Neck Diameter DN/d3 0.3819 inch 9.7 mm
Head length LH/l3 2.3622 inch 60 mm
Protruding length LPR/l5 2.3622 inch 60 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 6

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
