GRYCHIRPR-5.000R0.00-15.0CTZ22.0-F22_5213305000 (0649793)


Price:
Sale price$55.35
Stock:
Re-stocking soon

Description

H.SC.5,0.30°.Z6.HA.L TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYCHIRPR-5.000R0.00-15.0CTZ22.0-F22_5213305000 (0649793)
EDP # 0649793
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.8 oz 23 g

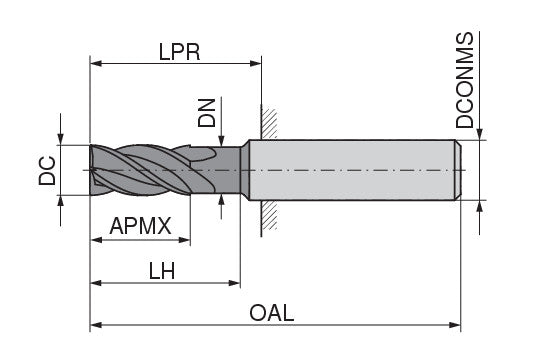

Cutting diameter DC/d1 e8 0.1969 inch 5 mm
Depth of cut maximum APMX/l2 0.5906 inch 15 mm
Protruding length LPR/l5 0.8661 inch 22 mm
Overall length OAL/l1 2.2835 inch 58 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 6

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
