GRYSHREDR-1.000R0.50-10.0CTZ21.0-F22_5230201000 (0649796)


Price:
Sale price$150.29
Stock:
Not in stock - Available to order

Description

H.RD.1,0.30.Z2.HA.L TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: 0,005 mm

Mat No: 5230201000, Article No: 52302010

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for point milling 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

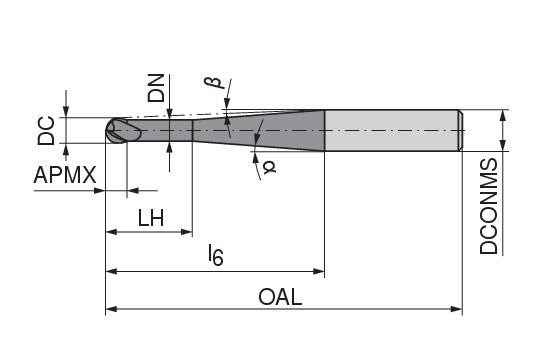

Properties
Name GRYSHREDR-1.000R0.50-10.0CTZ21.0-F22_5230201000 (0649796)
EDP # 0649796
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.8 oz 21 g
Cutting diameter DC/d1 0.0394 inch 1 mm
Depth of cut maximum APMX/l2 0.0394 inch 1 mm
Neck Diameter DN/d3 0.0374 inch 0.95 mm
Head length LH/l3 0.3937 inch 10 mm
L6 l6 0.6496062992125985 inch 16.5 mm
Beta a 9
Protruding length LPR/l5 0.8268 inch 21 mm
Overall length OAL/l1 2.2441 inch 57 mm
Mounting spigot diameter DCONMS/d2 h5 0.2362 inch 6 mm
Alpha b 15
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
