BLUSHREDR-1.000R0.50-2.00CTZ47.0-A29_5235231000 (0649800)


Price:
Sale price$68.51
Stock:
Re-stocking soon

Description

H.RD.1,0.30°.Z2.R0,5.HA.ML TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 5.0 mm, angle tolerance b and a: ± 0.5 °

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

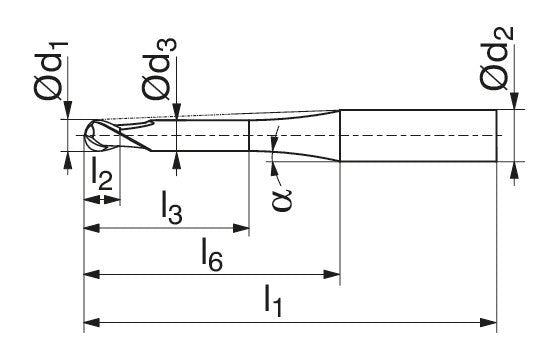

Name BLUSHREDR-1.000R0.50-2.00CTZ47.0-A29_5235231000 (0649800)
EDP # 0649800
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.4 oz 11 g
Cutting diameter DC/d1 f8 0.0394 inch 1 mm
Depth of cut maximum APMX/l2 0.0472 inch 1.2 mm
Neck Diameter DN/d3 0.0374 inch 0.95 mm
Head length LH/l3 0.0787 inch 2 mm
Alpha b° 1.5
L6 l6 1.062992125984252 inch 27 mm
Protruding length LPR/l5 1.8504 inch 47 mm
Overall length OAL/l1 2.9528 inch 75 mm
Mounting spigot diameter DCONMS/d2 h6 0.1181 inch 3 mm
Corner radius RE/r 0.0197 inch 0.5 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
