H.SA.12,0.30°.Z6.R1,0.HB.L TI2000 CARBIDE END MILL WITH CORNER RADIUS With decreasing helix angle for reduced machining noise & vibration
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
High performance end mill for hardened steel
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Workpiece Material(s)||Steel (Blue) Hard/Tool Steel (Grey)|
|Weight||4.7 oz||132 g|

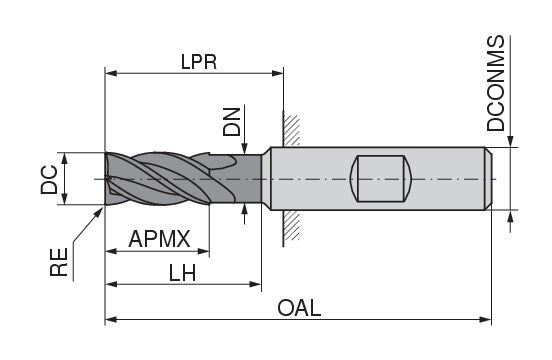

|Cutting diameter DC/d1 e8||0.4724 inch||12 mm|
|Corner radius RE/r ±0.01||0.0394 inch||1 mm|
|Depth of cut maximum APMX/l2||0.4724 inch||12 mm|
|Neck Diameter DN/d3||0.4331 inch||11 mm|
|Head length LH/l3||1.4961 inch||38 mm|
|Protruding length LPR/l5||1.4961 inch||38 mm|
|Overall length OAL/l1||3.2677 inch||83 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.4724 inch||12 mm|
Application & Properties:
