CERATIZIT H.SC.20,0.30°/45°.Z10.HA.ML50 TI2000 SOLID CARBIDE FINISH MILLING CUTTER 5234820000 (0649808)


Price:
Sale price$537.14
Stock:
Not in stock - Available to order

Description

H.SC.20,0.30°/45°.Z10.HA.ML50 TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Mat No: 5234820000, Article No: 52348200

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.SC.20,0.30°/45°.Z10.HA.ML50 TI2000 SOLID CARBIDE FINISH MILLING CUTTER 5234820000 (0649808)
EDP # 0649808
Workpiece Material(s) All Materials (White)
Weight 24.3 oz 688.5 g

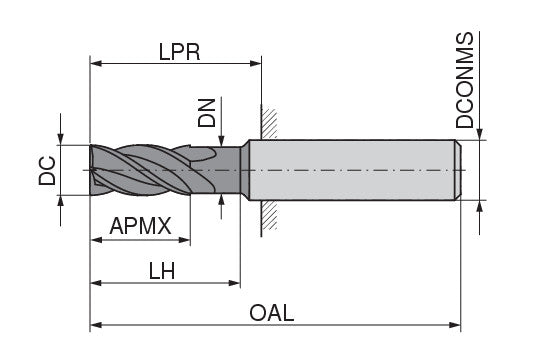

Cutting diameter DC/d1 e8 0.7874 inch 20 mm
Depth of cut maximum APMX/l2 1.9685 inch 50 mm
Neck Diameter DN/d3 0.7717 inch 19.6 mm
Head length LH/l3 3.937 inch 100 mm
Protruding length LPR/l5 3.937 inch 100 mm
Overall length OAL/l1 5.9055 inch 150 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Peripheral effective cutting edge count ZEFP/Z 10

Application & Properties:

Suitable Materials:

Property imageProperty image
,
