GRYCHIRPR-16.00R0.00-50.0CTZ62.0-R43_5213516000 (0649813)


Price:
Sale price$334.08
Stock:
Re-stocking soon

Description

H.SC.16,0.30°.Z8.HA.EL50 TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYCHIRPR-16.00R0.00-50.0CTZ62.0-R43_5213516000 (0649813)
EDP # 0649813
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 11.4 oz 324 g

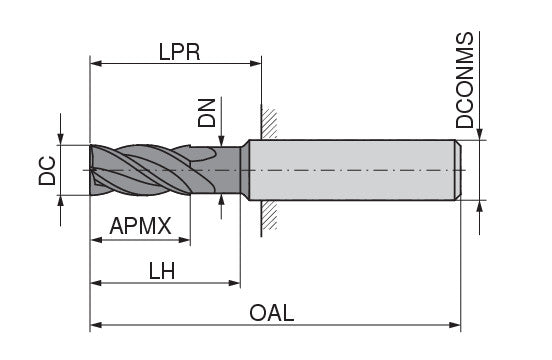

Cutting diameter DC/d1 e8 0.6299 inch 16 mm
Depth of cut maximum APMX/l2 1.9685 inch 50 mm
Protruding length LPR/l5 2.4409 inch 62 mm
Overall length OAL/l1 4.3307 inch 110 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm
Peripheral effective cutting edge count ZEFP/Z 8

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
