CERATIZIT H.RD.20,0.30°.Z2.HA.EL150 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5225820000 (0649817)


Price:
Sale price$577.82
Stock:
Not in stock - Available to order

Description

H.RD.20,0.30°.Z2.HA.EL150 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Mat No: 5225820000, Article No: 52258200

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.RD.20,0.30°.Z2.HA.EL150 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5225820000 (0649817)
EDP # 0649817
Workpiece Material(s) All Materials (White)
Weight 24.1 oz 684.4 g

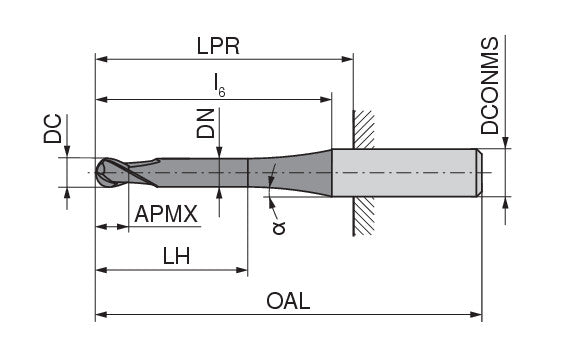

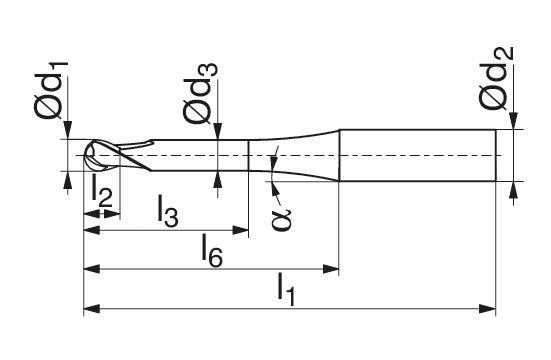

Cutting diameter DC/d1 f8 0.7874 inch 20 mm
Depth of cut maximum APMX/l2 1.5748 inch 40 mm
Neck Diameter DN/d3 0.7795 inch 19.8 mm
Head length LH/l3 2.3622 inch 60 mm
Protruding length LPR/l5 3.937 inch 100 mm
Overall length OAL/l1 5.9055 inch 150 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm

Application & Properties:

Suitable Materials:

Property imageProperty image
,
