GRYSHREDR-1.500R0.30-12.0CTZ21.0-F22_5230501500 (0649820)


Price:
Sale price$128.30
Stock:
Re-stocking soon

Description

H.TO.1,5.30°.Z2.R0,3.HA.EL TI2000 SOLID CARBIDE TORUS MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 6,0 mm / ± 0,01 mm for Ø > 6,0 mm or Ø 5.0 mm, angle tolerance b and a: ± 0.5 °

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSHREDR-1.500R0.30-12.0CTZ21.0-F22_5230501500 (0649820)
EDP # 0649820
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.7 oz 21 g

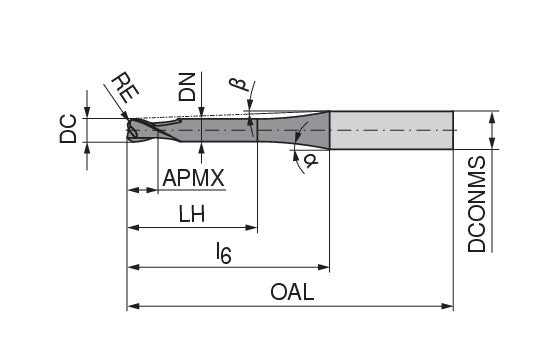

Cutting diameter DC/d1 ±0.01 0.0591 inch 1.5 mm
Corner radius RE/r ±0.005 0.0118 inch 0.3 mm
Depth of cut maximum APMX/l2 0.0492 inch 1.25 mm
Neck Diameter DN/d3 0.0551 inch 1.4 mm
Head length LH/l3 0.4724 inch 12 mm
L6 l6 0.7086614173228347 inch 18 mm
Protruding length LPR/l5 0.8268 inch 21 mm
Overall length OAL/l1 2.2441 inch 57 mm
Alpha b° ±0.5 21
Beta a° 7.5
Mounting spigot diameter DCONMS/d2 h5 0.2362 inch 6 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
