GRYSHREDR-2.000R1.00-4.00CTZ44.0-F31_5240402300 (0649824)


Price:
Sale price$84.03
Stock:
Re-stocking soon

Description

H.RD.2,0.30°.Z4.HA.EL80 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSHREDR-2.000R1.00-4.00CTZ44.0-F31_5240402300 (0649824)
EDP # 0649824
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 1.3 oz 35 g

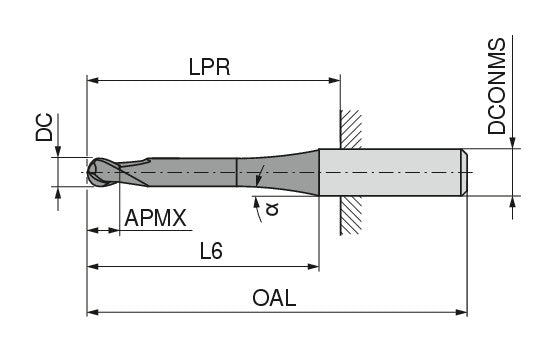

Peripheral effective cutting edge count ZEFP/Z 4
Cutting diameter DC/d1 f8 0.0787 inch 2 mm
Depth of cut maximum APMX/l2 0.1575 inch 4 mm
Alpha b° ±1 12
L6 l6 0.6299212598425197 inch 16 mm
Protruding length LPR/l5 1.7323 inch 44 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
