Description
H.SC.20,0.30.Z10.HA.EL55 TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration
Mat No: 5213520000, Article No: 52135200
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
High performance end mill for hardened steel
R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all,and perfect for prismatic features.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | GRYCHIRPR-20.00R0.00-55.0CTZ76.0-U49_5213520000 (0649826) | |
| EDP # | 0649826 | |
| Workpiece Material(s) | Steel (Blue) Hard/Tool Steel (Grey) | |
| Weight | 19.2 oz | 545 g |

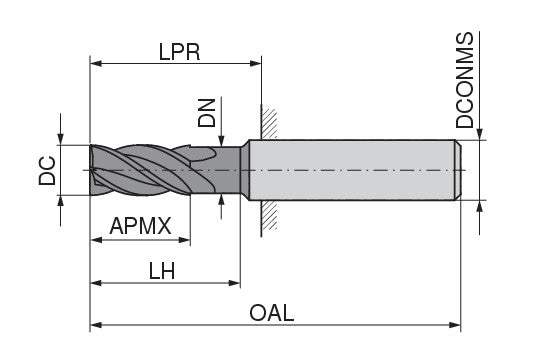

| Cutting diameter DC/d1 e8 | 0.7874 inch | 20 mm |
| Depth of cut maximum APMX/l2 | 2.1654 inch | 55 mm |
| Protruding length LPR/l5 | 2.9921 inch | 76 mm |
| Overall length OAL/l1 | 4.9606 inch | 126 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.7874 inch | 20 mm |
| Peripheral effective cutting edge count ZEFP/Z | 10 | |
Application & Properties:
Suitable Materials:
