GRYSTRIPR-5.000R2.50-11.0CTZ26.0-E21_5225605100 (0649841)


Price:
Sale price$56.48
Stock:
Re-stocking soon

Description

H.RD.5,0/5,0.30°.Z2.HA.K54 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-5.000R2.50-11.0CTZ26.0-E21_5225605100 (0649841)
EDP # 0649841
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.6 oz 17 g

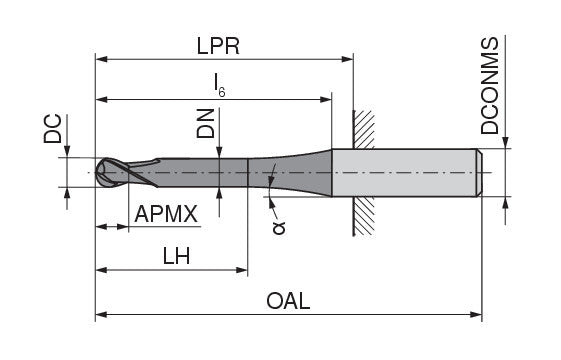

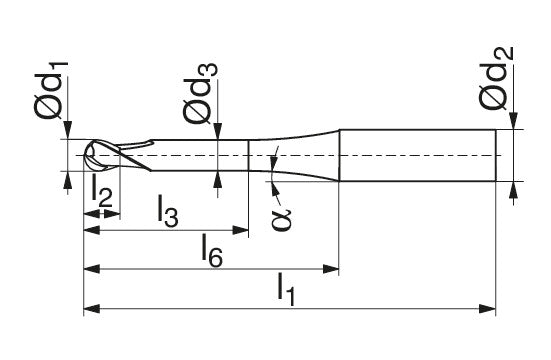

Cutting diameter DC/d1 f8 0.1969 inch 5 mm
Depth of cut maximum APMX/l2 0.315 inch 8 mm
Neck Diameter DN/d3 0.189 inch 4.8 mm
Head length LH/l3 0.4331 inch 11 mm
Protruding length LPR/l5 1.0236 inch 26 mm
Overall length OAL/l1 2.126 inch 54 mm
Mounting spigot diameter DCONMS/d2 h6 0.1969 inch 5 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
