GRYSHREDR-2.000R1.00-5.50CTZ18.0-F21_5225620600 (0649846)


Price:
Sale price$56.48
Stock:
Re-stocking soon

Description

H.RD.2,0.30°.Z2.HA.K54 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

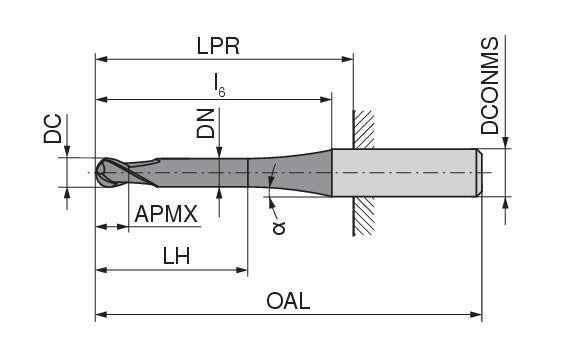

Name GRYSHREDR-2.000R1.00-5.50CTZ18.0-F21_5225620600 (0649846)
EDP # 0649846
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.7 oz 20 g

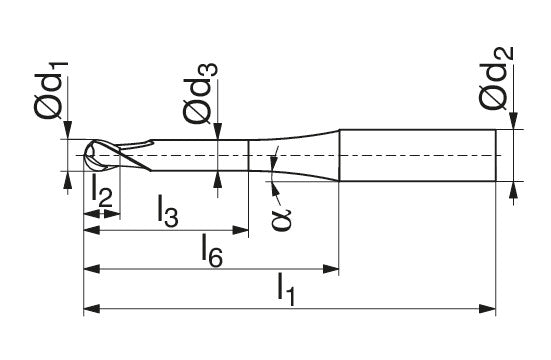

Cutting diameter DC/d1 f8 0.0787 inch 2 mm
Depth of cut maximum APMX/l2 0.1575 inch 4 mm
Neck Diameter DN/d3 0.0748 inch 1.9 mm
Head length LH/l3 0.2165 inch 5.5 mm
Alpha b° ±0.5 9
L6 l6 0.7086614173228347 inch 18 mm
Protruding length LPR/l5 0.7087 inch 18 mm
Overall length OAL/l1 2.126 inch 54 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
