GRYSTRIPR-4.000R2.00-10.0CTZ18.0-F21_5225640600 (0649848)


Price:
Sale price$65.06
Stock:
Not in stock - Available to order

Description

H.RD.4,0/6,0.30.Z2.HA.K54 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: 0,005 mm

Mat No: 5225640600, Article No: 52256406

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for point milling 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

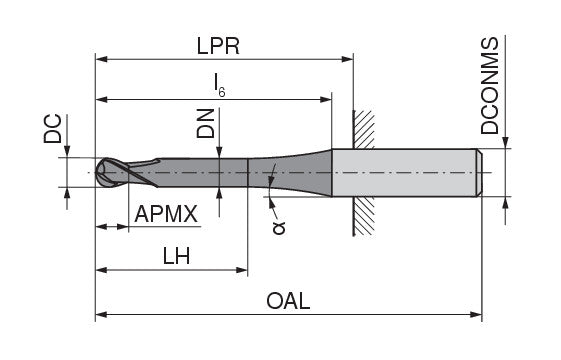

Name GRYSTRIPR-4.000R2.00-10.0CTZ18.0-F21_5225640600 (0649848)
EDP # 0649848
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.8 oz 21 g

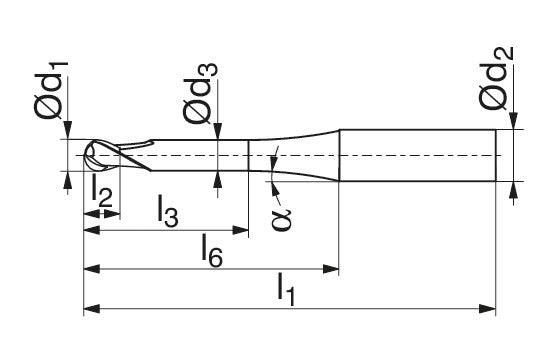

Cutting diameter DC/d1 f8 0.1575 inch 4 mm
Depth of cut maximum APMX/l2 0.2756 inch 7 mm
Neck Diameter DN/d3 0.1496 inch 3.8 mm
Head length LH/l3 0.3937 inch 10 mm
Alpha b 0.5 11
L6 l6 0.7086614173228347 inch 18 mm
Protruding length LPR/l5 0.7087 inch 18 mm
Overall length OAL/l1 2.126 inch 54 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
