GRYSHREDR-1.000R0.50-3.00CTZ18.0-F21_5225701000 (0649850)


Price:
Sale price$56.48
Stock:
Re-stocking soon

Description

H.RD.1,0.30°.Z2.HB.K TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

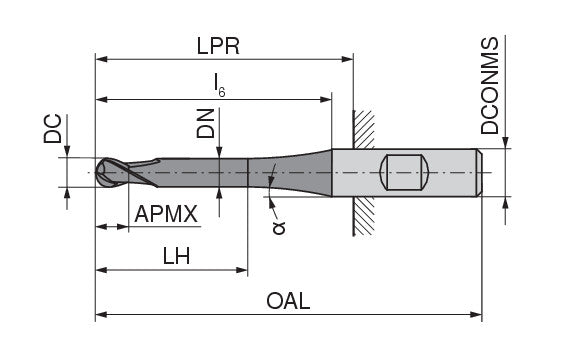

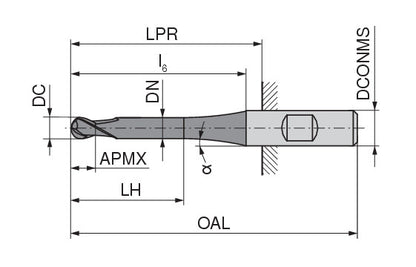

Name GRYSHREDR-1.000R0.50-3.00CTZ18.0-F21_5225701000 (0649850)
EDP # 0649850
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.7 oz 20 g
Cutting diameter DC/d1 f8 0.0394 inch 1 mm
Depth of cut maximum APMX/l2 0.0787 inch 2 mm
Neck Diameter DN/d3 0.0354 inch 0.9 mm
Head length LH/l3 0.1181 inch 3 mm
Alpha b° ±0.5 9.5
L6 l6 0.7086614173228347 inch 18 mm
Protruding length LPR/l5 0.7087 inch 18 mm
Overall length OAL/l1 2.126 inch 54 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
