Description
H.RD.1,5.30°.Z2.HB.K TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm
Mat No: 5225701500, Article No: 52257015
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

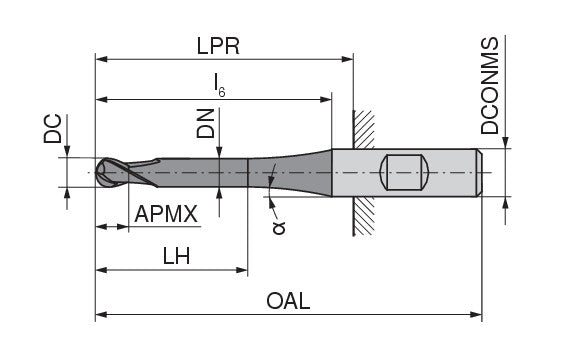

| Properties | ||
|---|---|---|
| Name | CERATIZIT H.RD.1,5.30°.Z2.HB.K TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5225701500 (0649851) | |
| EDP # | 0649851 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.7 oz | 20.2 g |
| Cutting diameter DC/d1 f8 | 0.0591 inch | 1.5 mm |
| Depth of cut maximum APMX/l2 | 0.1181 inch | 3 mm |
| Neck Diameter DN/d3 | 0.0551 inch | 1.4 mm |
| Head length LH/l3 | 0.1575 inch | 4 mm |
| Alpha b° ±0.5 | 9 | |
| L6 l6 | 0.7087 inch | 18 mm |
| Protruding length LPR/l5 | 0.7087 inch | 18 mm |
| Overall length OAL/l1 | 2.126 inch | 54 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP/Z | 2 | |
Application & Properties:
Suitable Materials:
