GRYSTRIPR-3.000R1.50-8.00CTZ18.0-F21_5225703000 (0649854)


Price:
Sale price$65.06
Stock:
Not in stock - Available to order

Description

H.RD.3,0.30.Z2.HB.K TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: 0,005 mm

Mat No: 5225703000, Article No: 52257030

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for point milling 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-3.000R1.50-8.00CTZ18.0-F21_5225703000 (0649854)
EDP # 0649854
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.7 oz 21 g

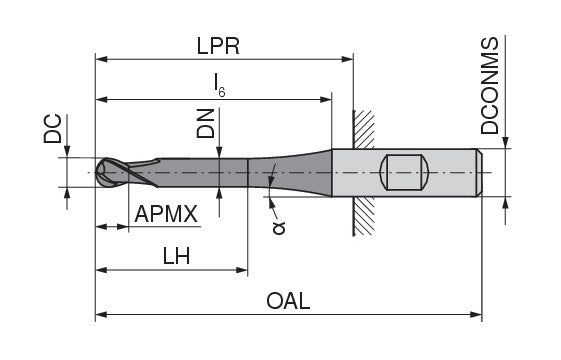

Cutting diameter DC/d1 f8 0.1181 inch 3 mm
Depth of cut maximum APMX/l2 0.2362 inch 6 mm
Neck Diameter DN/d3 0.1102 inch 2.8 mm
Head length LH/l3 0.315 inch 8 mm
Alpha b 0.5 9
L6 l6 0.7086614173228347 inch 18 mm
Protruding length LPR/l5 0.7087 inch 18 mm
Overall length OAL/l1 2.126 inch 54 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
