Description
H.RD.4,0.30.Z2.HB.K TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: 0,005 mm
Mat No: 5225704000, Article No: 52257040
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
High performance end mill for hardened steel
R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for point milling 3D surfaces.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

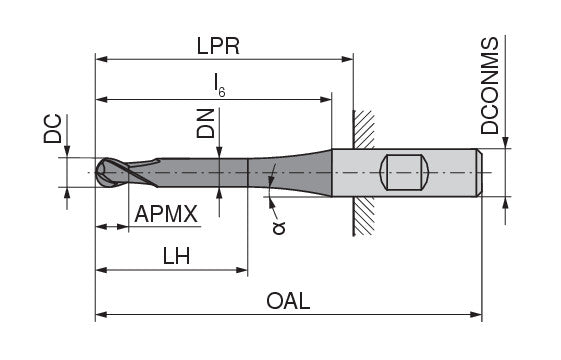

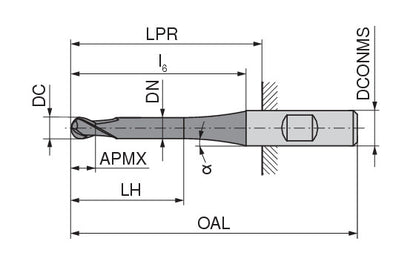

| Properties | ||
|---|---|---|
| Name | GRYSTRIPR-4.000R2.00-10.0CTZ18.0-F21_5225704000 (0649855) | |
| EDP # | 0649855 | |
| Workpiece Material(s) | Steel (Blue) Hard/Tool Steel (Grey) | |
| Weight | 0.7 oz | 21 g |
| Cutting diameter DC/d1 f8 | 0.1575 inch | 4 mm |
| Depth of cut maximum APMX/l2 | 0.2756 inch | 7 mm |
| Neck Diameter DN/d3 | 0.1496 inch | 3.8 mm |
| Head length LH/l3 | 0.3937 inch | 10 mm |
| Alpha b 0.5 | 11 | |
| L6 l6 | 0.7086614173228347 inch | 18 mm |
| Protruding length LPR/l5 | 0.7087 inch | 18 mm |
| Overall length OAL/l1 | 2.126 inch | 54 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
Application & Properties:
Suitable Materials:
