GRYSTRIPR-6.000R3.00-15.0CTZ18.0-F21_5225706000 (0649857)


Price:
Sale price$65.06
Stock:
Not in stock - Available to order

Description

H.RD.6,0.30.Z2.HB.K TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: 0,005 mm

Mat No: 5225706000, Article No: 52257060

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for point milling 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-6.000R3.00-15.0CTZ18.0-F21_5225706000 (0649857)
EDP # 0649857
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.8 oz 23 g

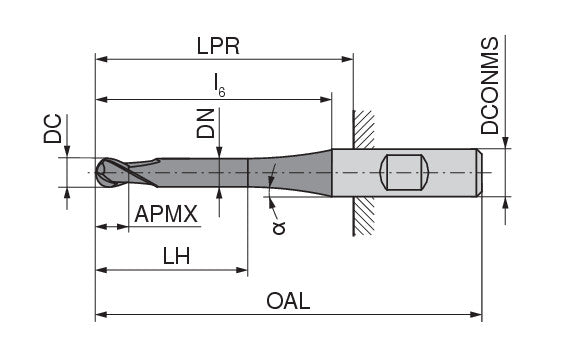

Cutting diameter DC/d1 f8 0.2362 inch 6 mm
Depth of cut maximum APMX/l2 0.3937 inch 10 mm
Neck Diameter DN/d3 0.2283 inch 5.8 mm
Head length LH/l3 0.5906 inch 15 mm
Protruding length LPR/l5 0.7087 inch 18 mm
Overall length OAL/l1 2.126 inch 54 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
