BLUSHREDR-2.000R0.30-10.0CTZ22.0-C19_5236262003 (0649912)


Price:
Sale price$56.48
Stock:
Re-stocking soon

Description

H.TO.2,0.30°.Z2.R0,3.HA.ML10 TI2000 SOLID CARBIDE TORUS MILLING CUTTER T x = maximum engagement depth

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUSHREDR-2.000R0.30-10.0CTZ22.0-C19_5236262003 (0649912)
EDP # 0649912
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.4 oz 12 g

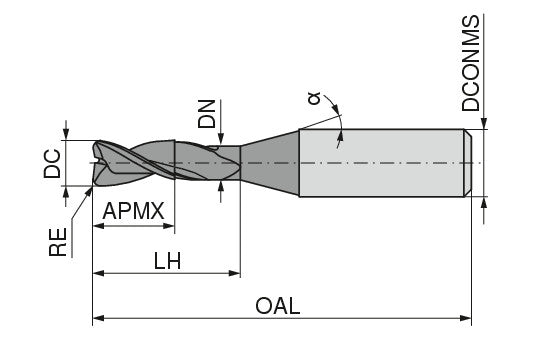

Cutting diameter DC/d1 -0.008 0.0787 inch 2 mm
Corner radius RE/r ±0.005 0.0118 inch 0.3 mm
Depth of cut maximum APMX/l2 0.0787 inch 2 mm
Neck Diameter DN/d3 0.0752 inch 1.91 mm
Head length LH/l3 0.3937 inch 10 mm
Protruding length LPR/l5 0.8661 inch 22 mm
Overall length OAL/l1 1.9685 inch 50 mm
Alpha b° 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
