BLUGLIDER-2.000R0.00-25.0CTZ32.0-C23_5234642000 (0649918)


Price:
Sale price$74.00
Stock:
Not in stock - Available to order

Description

H.SC.2,0.30.Z2.HA.L3,0/25 TI2000 SOLID CARBIDE FINISH MILLING CUTTER T x = maximum engagement depth

Mat No: 5234642000, Article No: 52346420

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all,and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUGLIDER-2.000R0.00-25.0CTZ32.0-C23_5234642000 (0649918)
EDP # 0649918
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.4 oz 12 g

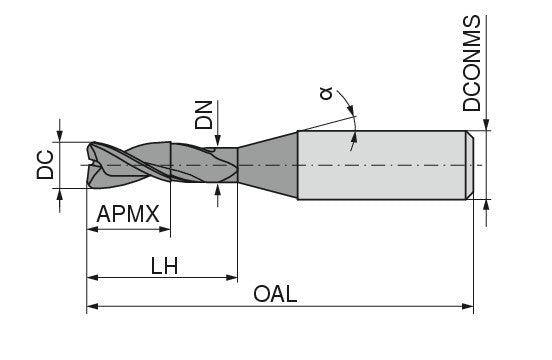

Peripheral effective cutting edge count ZEFP/Z 2
Cutting diameter DC/d1 -0.01 0.0787 inch 2 mm
Depth of cut maximum APMX/l2 0.1181 inch 3 mm
Neck Diameter DN/d3 0.0752 inch 1.91 mm
Head length LH/l3 0.9843 inch 25 mm
Protruding length LPR/l5 1.2598 inch 32 mm
Overall length OAL/l1 2.3622 inch 60 mm
Alpha b 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
