BLUGLIDER-1.500R0.00-30.0CTZ42.0-C27_5234671500 (0649922)


Price:
Sale price$64.23
Stock:
Re-stocking soon

Description

H.SC.1,5.30°.Z2.HA.L2,3/30 TI2000 SOLID CARBIDE FINISH MILLING CUTTER T x = maximum engagement depth

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUGLIDER-1.500R0.00-30.0CTZ42.0-C27_5234671500 (0649922)
EDP # 0649922
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.5 oz 13 g

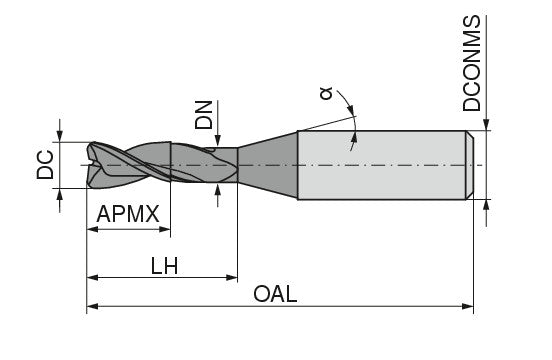

Cutting diameter DC/d1 -0.01 0.0591 inch 1.5 mm
Depth of cut maximum APMX/l2 0.0906 inch 2.3 mm
Neck Diameter DN/d3 0.0567 inch 1.44 mm
Head length LH/l3 1.1811 inch 30 mm
Protruding length LPR/l5 1.6535 inch 42 mm
Overall length OAL/l1 2.7559 inch 70 mm
Alpha b° 16
Mounting spigot diameter DCONMS/d2 h5 0.1575 inch 4 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
