GRYSHREDR-2.000R1.00-4.00CTZ47.0-A29_5240402200 (0649923)


Price:
Sale price$74.00
Stock:
Not in stock - Available to order

Description

H.RD.2,0.30.Z4.HA.EL75 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: 0,005 mm

Mat No: 5240402200, Article No: 52404022

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for point milling 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSHREDR-2.000R1.00-4.00CTZ47.0-A29_5240402200 (0649923)
EDP # 0649923
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.4 oz 11 g

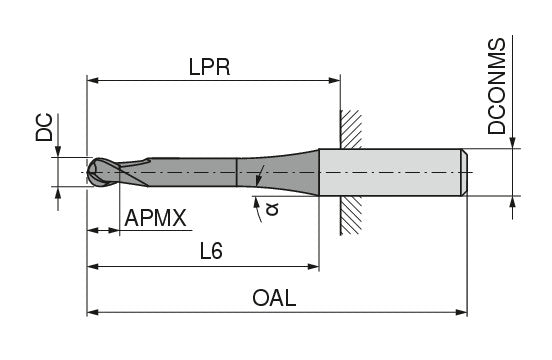

Peripheral effective cutting edge count ZEFP/Z 4
Cutting diameter DC/d1 f8 0.0787 inch 2 mm
Depth of cut maximum APMX/l2 0.1575 inch 4 mm
Alpha b 1 8
L6 l6 0.3937007874015748 inch 10 mm
Protruding length LPR/l5 1.8504 inch 47 mm
Overall length OAL/l1 2.9528 inch 75 mm
Mounting spigot diameter DCONMS/d2 h6 0.1181 inch 3 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
