GRYSTRIPR-4.000R1.00-12.0CTZ21.0-F22_5230404000 (0649931)


Price:
Sale price$100.02
Stock:
Re-stocking soon

Description

H.TO.4,0.30°.Z2.R1,0.HA.L TI2000 SOLID CARBIDE TORUS MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 6,0 mm / ± 0,01 mm for Ø > 6,0 mm or Ø 5.0 mm, angle tolerance b and a: ± 0.5 °

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-4.000R1.00-12.0CTZ21.0-F22_5230404000 (0649931)
EDP # 0649931
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.8 oz 22 g

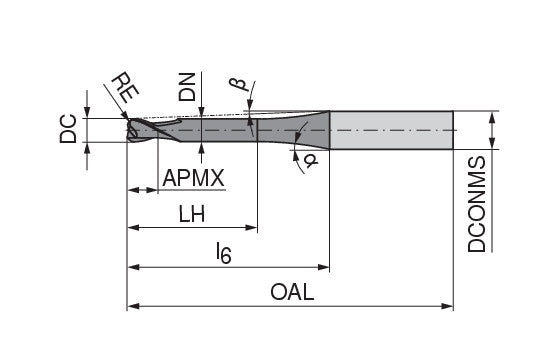

Peripheral effective cutting edge count ZEFP/Z 2
Cutting diameter DC/d1 0.1575 inch 4 mm
Corner radius RE/r ±0.005 0.0394 inch 1 mm
Depth of cut maximum APMX/l2 0.1575 inch 4 mm
Neck Diameter DN/d3 0.1496 inch 3.8 mm
Head length LH/l3 0.4724 inch 12 mm
L6 l6 0.7874015748031497 inch 20 mm
Protruding length LPR/l5 0.8268 inch 21 mm
Overall length OAL/l1 2.2441 inch 57 mm
Alpha b° 11
Beta a° 3.5
Mounting spigot diameter DCONMS/d2 h5 0.2362 inch 6 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
