GRYSTRIPR-12.00R4.00-35.0CTZ38.0-M32_5230412000 (0649949)

Sale price$231.72
Re-stocking soon


H.TO.12.30°.Z2.R4,0.HB.L TI2000 SOLID CARBIDE TORUS MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 6,0 mm / ± 0,01 mm for Ø > 6,0 mm or Ø 5.0 mm, angle tolerance b and a: ± 0.5 °

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name GRYSTRIPR-12.00R4.00-35.0CTZ38.0-M32_5230412000 (0649949)
EDP # 0649949
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 4.6 oz 130 g

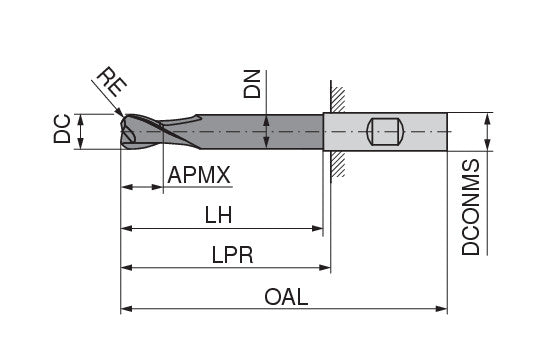

Peripheral effective cutting edge count ZEFP/Z 2
Cutting diameter DC/d1 0.4724 inch 12 mm
Corner radius RE/r ±0.01 0.1575 inch 4 mm
Depth of cut maximum APMX/l2 0.3937 inch 10 mm
Neck Diameter DN/d3 0.4528 inch 11.5 mm
Head length LH/l3 1.378 inch 35 mm
Protruding length LPR/l5 1.4961 inch 38 mm
Overall length OAL/l1 3.2677 inch 83 mm
Mounting spigot diameter DCONMS/d2 h5 0.4724 inch 12 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
