GRYSTRIPR-12.00R6.00-35.0CTZ38.0-M32_5230312000 (0649950)


Price:
Sale price$219.47
Stock:
Re-stocking soon

Description

H.RD.12,0.30°.Z2.HA.L83 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0.005 mm for Ø 6.0 mm / ± 0.01 mm for Ø > 6,0 mm for Ø 5.0 mm, angle tolerance b and a: ± 0.5 °

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-12.00R6.00-35.0CTZ38.0-M32_5230312000 (0649950)
EDP # 0649950
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 4.4 oz 123 g

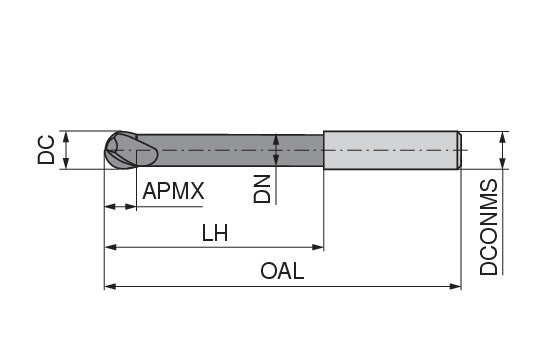

Cutting diameter DC/d1 0.4724 inch 12 mm
Depth of cut maximum APMX/l2 0.3937 inch 10 mm
Neck Diameter DN/d3 0.4528 inch 11.5 mm
Head length LH/l3 1.378 inch 35 mm
Protruding length LPR/l5 1.4961 inch 38 mm
Overall length OAL/l1 3.2677 inch 83 mm
Mounting spigot diameter DCONMS/d2 h5 0.4724 inch 12 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
