GRYCHIRPR-14.00R0.00-30.0CTZ39.0-O33_5213414000 (0649953)


Price:
Sale price$206.06
Stock:
Not in stock - Available to order

Description

H.SC.14,0.30.Z6.HB.L TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Mat No: 5213414000, Article No: 52134140

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all,and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

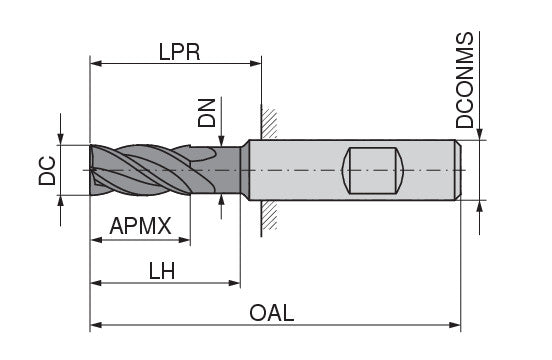

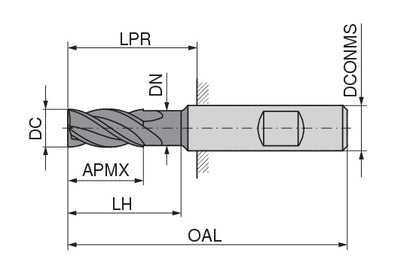

Name GRYCHIRPR-14.00R0.00-30.0CTZ39.0-O33_5213414000 (0649953)
EDP # 0649953
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 6.9 oz 197 g
Cutting diameter DC/d1 e8 0.5512 inch 14 mm
Depth of cut maximum APMX/l2 1.1811 inch 30 mm
Protruding length LPR/l5 1.5354 inch 39 mm
Overall length OAL/l1 3.3071 inch 84 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Peripheral effective cutting edge count ZEFP/Z 6

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
