BLUCHIRPR-12.00N0.13-38.0CTZ39.0-M33_5234412000 (0649955)


Price:
Sale price$109.64
Stock:
Re-stocking soon

Description

H.SC.12,0.30°.Z2.F.HA.ML TI2000 SOLID CARBIDE FINISH MILLING CUTTER

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUCHIRPR-12.00N0.13-38.0CTZ39.0-M33_5234412000 (0649955)
EDP # 0649955
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 4.3 oz 122 g

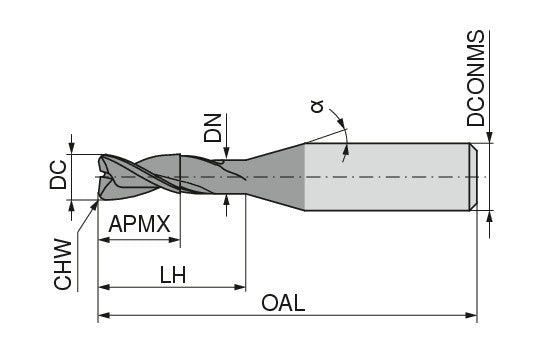

Cutting diameter DC/d1 e8 0.4724 inch 12 mm
Depth of cut maximum APMX/l2 1.0236 inch 26 mm
Neck Diameter DN/d3 0.4646 inch 11.8 mm
Head length LH/l3 1.4961 inch 38 mm
Protruding length LPR/l5 1.5354 inch 39 mm
Overall length OAL/l1 3.3071 inch 84 mm
Mounting spigot diameter DCONMS/d2 h5 0.4724 inch 12 mm
Corner chamfer width CHW/K 0.0051 inch 0.13 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
