GRYCHIRPR-10.00R0.00-35.0CTZ45.0-K33_5213510000 (0649959)


Price:
Sale price$154.43
Stock:
Not in stock - Available to order

Description

H.SC.10,0.30.Z6.HA.EL35 TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Mat No: 5213510000, Article No: 52135100

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all,and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYCHIRPR-10.00R0.00-35.0CTZ45.0-K33_5213510000 (0649959)
EDP # 0649959
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 3.2 oz 91 g

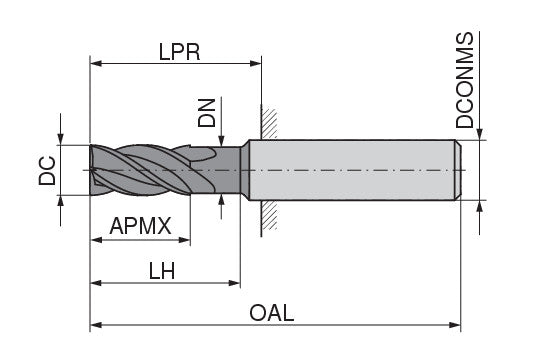

Cutting diameter DC/d1 e8 0.3937 inch 10 mm
Depth of cut maximum APMX/l2 1.378 inch 35 mm
Protruding length LPR/l5 1.7717 inch 45 mm
Overall length OAL/l1 3.3465 inch 85 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 6

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
