BLUSTRIPR-4.000R2.00-16.0CTZ44.0-F31_5235204000 (0649962)


Price:
Sale price$103.62
Stock:
Re-stocking soon

Description

H.RD.4,0.30°.Z2.R2,0.HA.ML TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 5.0 mm, angle tolerance b and a: ± 0.5 °

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUSTRIPR-4.000R2.00-16.0CTZ44.0-F31_5235204000 (0649962)
EDP # 0649962
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 1.0 oz 29 g

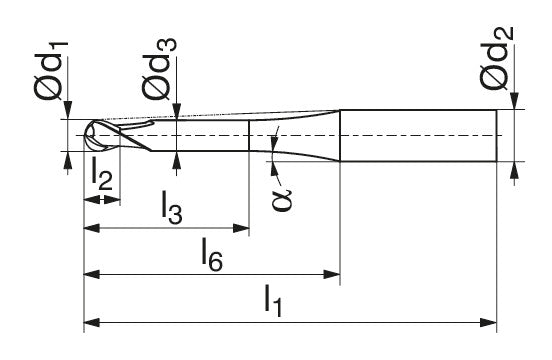

Peripheral effective cutting edge count ZEFP/Z 2
Cutting diameter DC/d1 f8 0.1575 inch 4 mm
Depth of cut maximum APMX/l2 0.1969 inch 5 mm
Neck Diameter DN/d3 0.1496 inch 3.8 mm
Head length LH/l3 0.6299 inch 16 mm
Alpha b° 1.5
L6 l6 1.5748031496062993 inch 40 mm
Protruding length LPR/l5 1.7323 inch 44 mm
Overall length OAL/l1 3.1496 inch 80 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Corner radius RE/r 0.0787 inch 2 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
