Description
H.TO.3,0.30°.Z2.R0,5.HA.EL TI2000 SOLID CARBIDE TORUS MILLING CUTTER Radius accuracy: ± 0,005 mm for Ø 6,0 mm / ± 0,01 mm for Ø > 6,0 mm or Ø 5.0 mm, angle tolerance b and a: ± 0.5 °
Mat No: 5230503000, Article No: 52305030
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

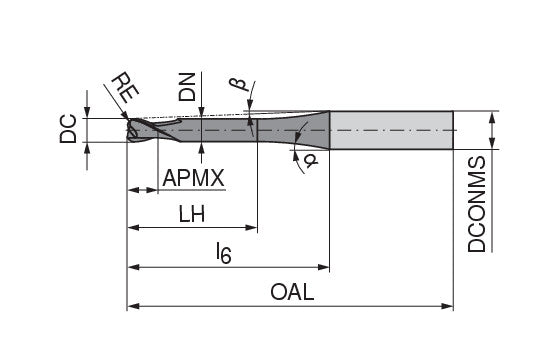

| Properties | ||
|---|---|---|
| Name | CERATIZIT H.TO.3,0.30°.Z2.R0,5.HA.EL TI2000 SOLID CARBIDE TORUS MILLING CUTTER 5230503000 (0649963) | |
| EDP # | 0649963 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 1.1 oz | 31.1 g |
| Cutting diameter DC/d1 ±0.01 | 0.1181 inch | 3 mm |
| Corner radius RE/r ±0.005 | 0.0197 inch | 0.5 mm |
| Depth of cut maximum APMX/l2 | 0.0787 inch | 2 mm |
| Neck Diameter DN/d3 | 0.1142 inch | 2.9 mm |
| Head length LH/l3 | 0.7874 inch | 20 mm |
| L6 l6 | 1.3583 inch | 34.5 mm |
| Protruding length LPR/l5 | 1.7323 inch | 44 mm |
| Overall length OAL/l1 | 3.1496 inch | 80 mm |
| Alpha b° ±0.5 | 6 | |
| Beta a° | 2.5 | |
| Mounting spigot diameter DCONMS/d2 h5 | 0.2362 inch | 6 mm |
Application & Properties:
Suitable Materials:
