GRYSTRIPR-10.00R5.00-40.0CTZ60.0-K39_5225910000 (0649974)


Price:
Sale price$131.71
Stock:
Re-stocking soon

Description

H.RD.10,0.30°.Z2.HB.EL TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-10.00R5.00-40.0CTZ60.0-K39_5225910000 (0649974)
EDP # 0649974
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 3.9 oz 109 g

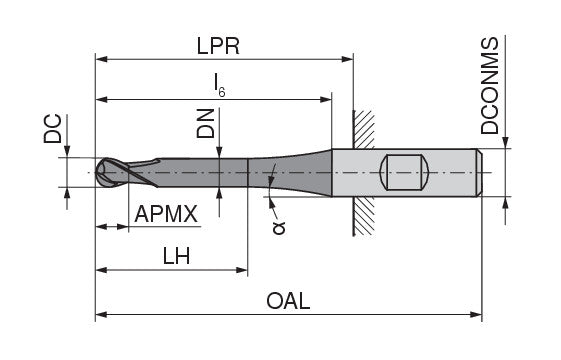

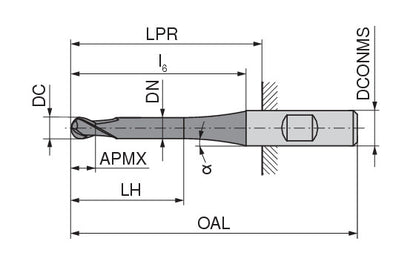

Cutting diameter DC/d1 f8 0.3937 inch 10 mm
Depth of cut maximum APMX/l2 0.9843 inch 25 mm
Neck Diameter DN/d3 0.3858 inch 9.8 mm
Head length LH/l3 1.5748 inch 40 mm
Protruding length LPR/l5 2.3622 inch 60 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
