GRYCHIRPR-12.00R0.00-45.0CTZ55.0-M39_5213512000 (0649988)


Price:
Sale price$204.70
Stock:
Re-stocking soon

Description

H.SC.12,0.30°.Z6.HA.EL45 TI2000 SOLID CARBIDE FINISH MILLING CUTTER With decreasing helix angle for reduced machining noise & vibration

Mat No: 5234812000, Article No: 52348120

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYCHIRPR-12.00R0.00-45.0CTZ55.0-M39_5213512000 (0649988)
EDP # 0649988
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 5.6 oz 157 g

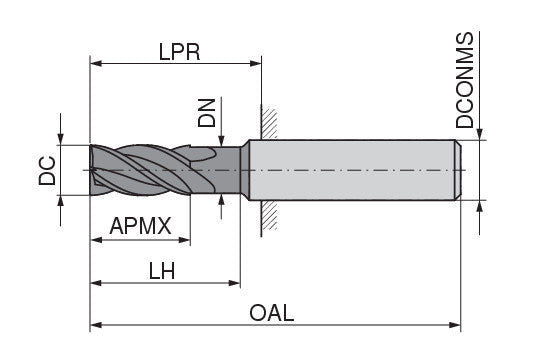

Cutting diameter DC/d1 e8 0.4724 inch 12 mm
Depth of cut maximum APMX/l2 1.7717 inch 45 mm
Protruding length LPR/l5 2.1654 inch 55 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.4724 inch 12 mm
Peripheral effective cutting edge count ZEFP/Z 6

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
