GRYSTRIPR-4.000R2.00-20.0CTZ47.0-C29_5225804100 (0649989)


Price:
Sale price$65.84
Stock:
Not in stock - Available to order

Description

H.RD.4,0.30.Z2.HA.EL75 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: 0,005 mm

Mat No: 5225804100, Article No: 52258041

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for hardened steel

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for point milling 3D surfaces.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRYSTRIPR-4.000R2.00-20.0CTZ47.0-C29_5225804100 (0649989)
EDP # 0649989
Workpiece Material(s) Steel (Blue) Hard/Tool Steel (Grey)
Weight 0.7 oz 19 g

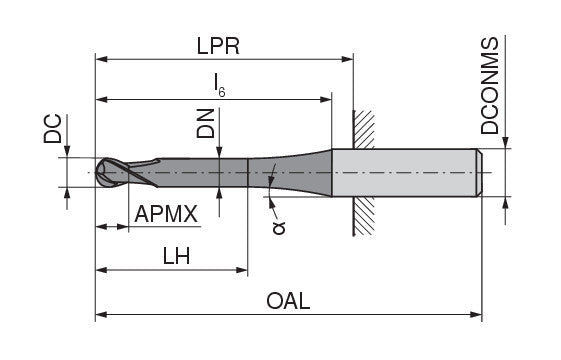

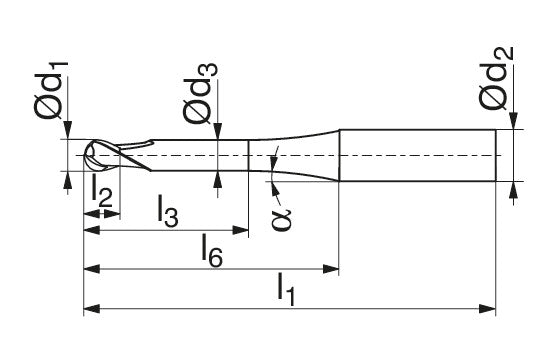

Cutting diameter DC/d1 f8 0.1575 inch 4 mm
Depth of cut maximum APMX/l2 0.5118 inch 13 mm
Neck Diameter DN/d3 0.1496 inch 3.8 mm
Head length LH/l3 0.7874 inch 20 mm
Protruding length LPR/l5 1.8504 inch 47 mm
Overall length OAL/l1 2.9528 inch 75 mm
Mounting spigot diameter DCONMS/d2 h6 0.1575 inch 4 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty image
