UN.0500.5.R0060.HA.1625.4000 DPAU72S CARBIDE END MILL WITH CORNER RADIUS
Mat No: 14429314, Article No: 5900690037
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
High performance end mill for ferrous materials
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Workpiece Material(s)||Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange)|
|Weight||6.5 oz||185 g|

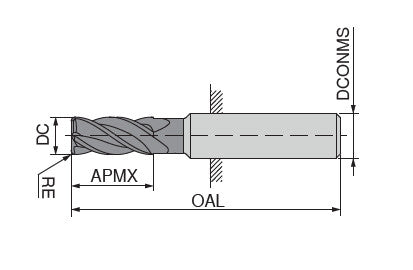

|Cutting diameter DC/d1 +0.000/-0.002||0.5 inch||12.7 mm|
|Corner radius RE/r||0.06 inch||1.524 mm|
|Depth of cut maximum APMX/l2||1.625 inch||41.275 mm|
|Overall length OAL/l1||4 inch||101.6 mm|
|Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004||0.5 inch||12.7 mm|
|Peripheral effective cutting edge count ZEFP/Z||5|
Application & Properties:
