GRNSTRIPR-19.05R0.00-57.1CTZ57.1-T50_14429481 (0650220)


Price:
Sale price$181.35
Stock:
Not in stock - Available to order

Description

AL.0750.3.HA.2250.5000 ZRN-U SOLID CARBIDE END MILLING CUTTER

Mat No: 14429481, Article No: 5900475030

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for non-ferrous materials

R form tools are the classic end-mill shape,with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all,and perfect for prismatic features.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRNSTRIPR-19.05R0.00-57.1CTZ57.1-T50_14429481 (0650220)
EDP # 0650220
Workpiece Material(s) Aluminum (Green)
Weight 18.4 oz 523 g

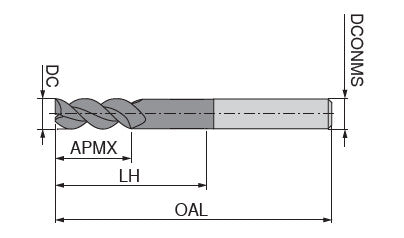

Cutting diameter DC/d1 +0.000/-0.002 0.75 inch 19.05 mm
Depth of cut maximum APMX/l2 2.25 inch 57.15 mm
Overall length OAL/l1 5 inch 127 mm
Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 0.75 inch 19.05 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property image
