AL.0500.3.HA.1000.3000 ZRN-U SOLID CARBIDE END MILLING CUTTER
Mat No: 14429389, Article No: 5900418840
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
High performance end mill for non-ferrous materials
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Workpiece Material(s)||Aluminum (Green)|
|Weight||4.9 oz||139 g|

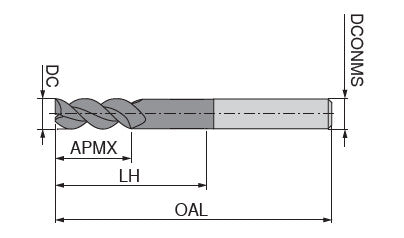

|Cutting diameter DC/d1 +0.000/-0.002||0.5 inch||12.7 mm|
|Depth of cut maximum APMX/l2||1 inch||25.4 mm|
|Overall length OAL/l1||3 inch||76.2 mm|
|Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004||0.5 inch||12.7 mm|
|Peripheral effective cutting edge count ZEFP/Z||3|
Application & Properties:
