GRNSHREDR-4.763R0.76-25.4CTZ25.4-D30_14429394 (0650255)


Price:
Sale price$32.45
Stock:
Re-stocking soon

Description

AL.0188.3.R0030.HA.1000.3000 ZRN-U CARBIDE END MILL WITH CORNER RADIUS

Mat No: 14429389, Article No: 5900418840

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

High performance end mill for non-ferrous materials

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name GRNSHREDR-4.763R0.76-25.4CTZ25.4-D30_14429394 (0650255)
EDP # 0650255
Workpiece Material(s) Aluminum (Green)
Weight 0.8 oz 22 g

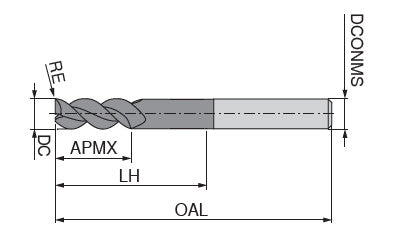

Cutting diameter DC/d1 +0.000/-0.002 0.1875 inch 4.7625 mm
Corner radius RE/r 0.03 inch 0.762 mm
Depth of cut maximum APMX/l2 1 inch 25.4 mm
Overall length OAL/l1 3 inch 76.2 mm
Mounting spigot diameter DCONMS/d2 -0.0001 / -0.0004 0.1875 inch 4.7625 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property image
