Description
ZSG-4.WB.G.AL.80 REVERSIBLE JAW GRIP Price per piece Scope of supply: without mounting screws
Mat No: 8087881200, Article No: 8087881200
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

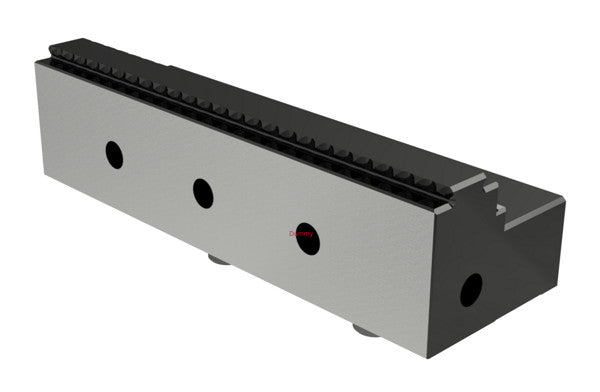

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
Properties | ||
---|---|---|
Name | CERATIZIT ZSG-4.WB.G.AL.80 REVERSIBLE JAW GRIP 8087881200 (0650326) | |
EDP # | 0650326 | |
Weight | 17.2 oz | 487.0 g |

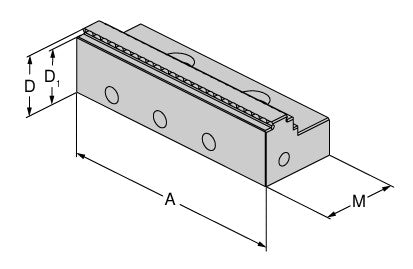

A | 3.1496 inch | 80 mm |
D | 1.1024 inch | 28 mm |
D1 | 0.9055 inch | 23 mm |
M | 1.5748 inch | 40 mm |
Designation | ZSG-4.WB.G.AL.80 |
Application & Properties:
