Description

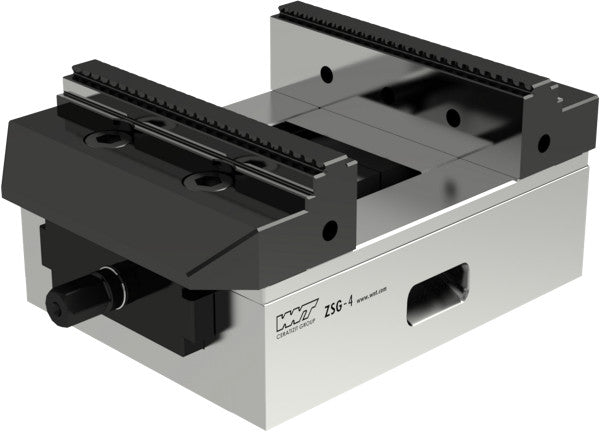

ZSG-4.125.MB W.S.L. CENTRIC VICE WITH GRIP JAWS with 2 reversible grip jaws ball bearing mounted spindle 0.01 mm repeatability
Mat No: 8087812500,Article No: 80878125
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
ZSG is a modular workholding system
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

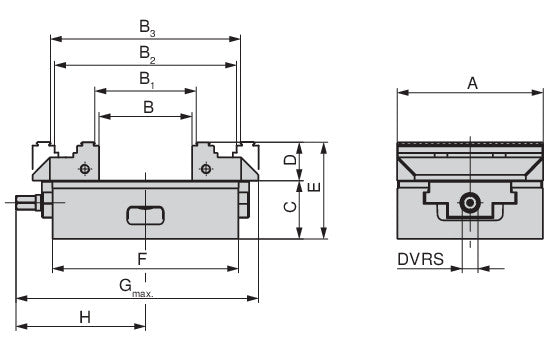

| Properties | ||
|---|---|---|
| Name | Ceratizit ZSG-4.125.MB W.S.L. 8087812500 (0650337) | |
| EDP # | 0650337 | |
| Primary Units | Metric / Millimeters | |
| Weight | 250.4 oz | 7100 g |
| A | 4.9213 inch | 125 mm |
| B | 0 - 80 | |
| B1 B1 | 8 - 87 | |
| B2 B2 | 77 - 156 | |
| B3 B3 | 84 - 163 | |
| C 0.01 | 1.9685 inch | 50 mm |
| D | 1.2992 inch | 33 mm |
| E | 3.2677 inch | 83 mm |
| F | 6.2992 inch | 160 mm |
| H | 111.5 | |
| G max. Gmax. | 8.1890 inch | 208 mm |
| Drive size DRVS/SW | 0.4724 inch | 12 mm |
| Clamping force maximum MXC/Clamping force | 35 kN | |
