Description

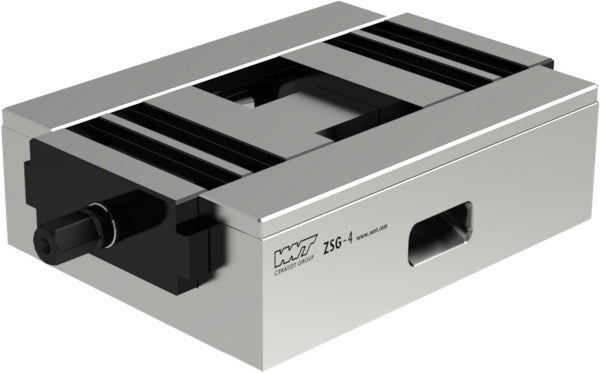

ZSG-4.160.OB CENTRIC VICE sealed centric vice without system jaws ball bearing mounted spindle ±0.01 mm repeatability
Mat No: 8087826000, Article No: 80878260
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

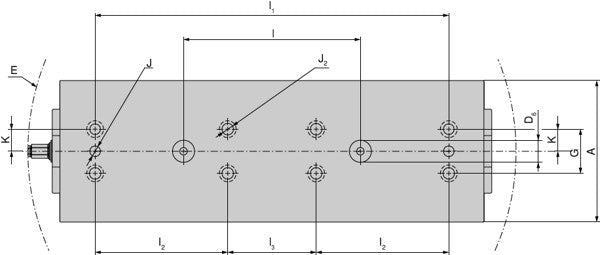

| Properties | ||
|---|---|---|
| Name | CERATIZIT ZSG-4.160.OB CENTRIC VICE 8087826000 (0650340) | |
| EDP # | 0650340 | |
| Weight | 1368.6 oz | 38800.0 g |
| A | 6.2992 inch | 160 mm |
| G | 1.9685 inch | 50 mm |
| C ±0.01 | 2.7559 inch | 70 mm |
| F | 18.8976 inch | 480 mm |
| H | 10.8661 inch | 276 mm |
| Gmax. | 20.6299 inch | 524 mm |
| K ±0.02 | 0.9843 inch | 25 mm |
| D6 H6 | 0.9843 inch | 25 mm |
| Maximum clamping force MXC | 50 kN | |
| Drive size DRVS | 0.5512 inch | 14 mm |
| Designation | ZSG-4.160.OB | |
