Description

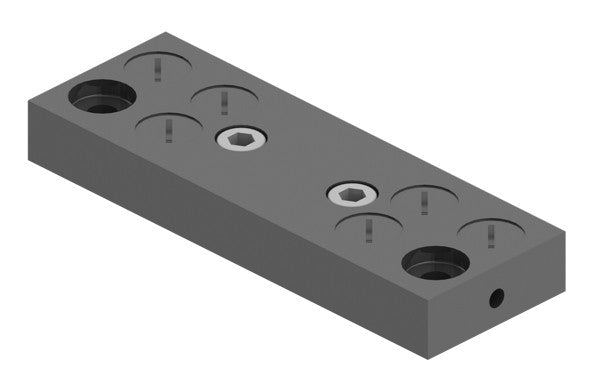

ZSG-4.160.AP.F ADAPTER PLATE FIXED Price per piece Scope of supply: including screws
Mat No: 8087869000, Article No: 80878690
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
Properties | ||
---|---|---|
Name | CERATIZIT ZSG-4.160.AP.F ADAPTER PLATE FIXED 8087869000 (0650375) | |
EDP # | 0650375 | |
Weight | 198.8 oz | 5636.0 g |

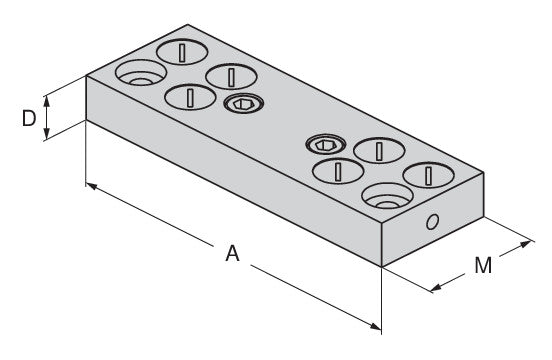

A | 10.0787 inch | 256 mm |
for width | 6.2992 inch | 160 mm |
D | 0.8661 inch | 22 mm |
M | 4.9213 inch | 125 mm |
Designation | ZSG-4.160.AP.F |
Application & Properties:
