CERATIZIT ZSG-4.80.130.MB-G CENTRIC VICE WITH GRIP JAWS 8087808000 (0650380)


Price:
Sale price$1,181.86
Stock:
Not in stock - Available to order

Description

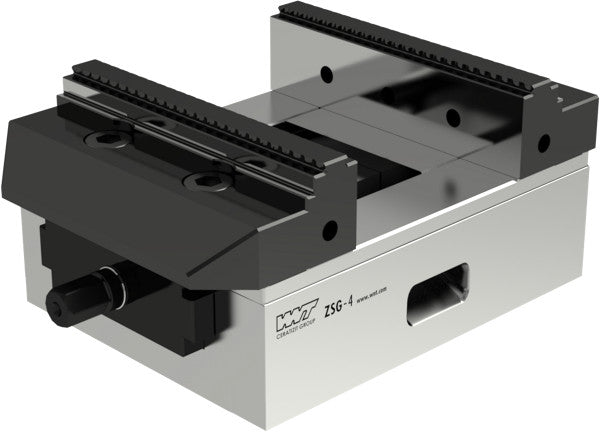

ZSG-4.80.130.MB-G CENTRIC VICE WITH GRIP JAWS with 2 reversible grip jaws ball bearing mounted spindle ±0.01 mm repeatability

Mat No: 8087808000, Article No: 80878080

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT ZSG-4.80.130.MB-G CENTRIC VICE WITH GRIP JAWS 8087808000 (0650380)
EDP # 0650380
Weight 148.3 oz 4204.0 g

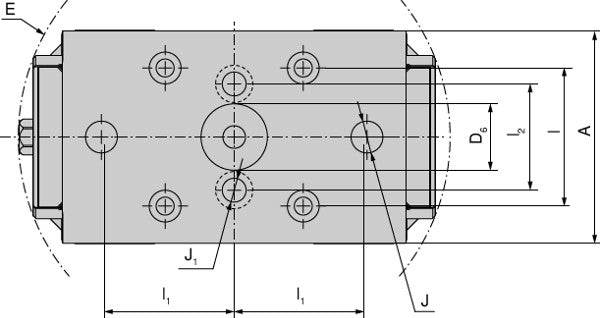

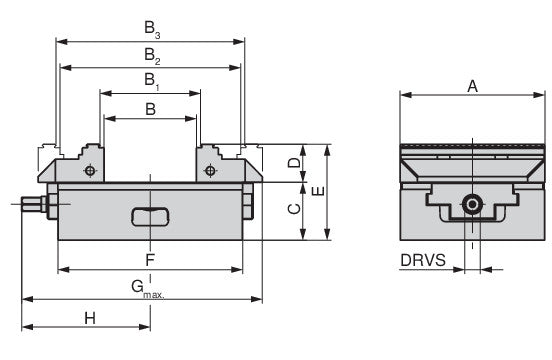

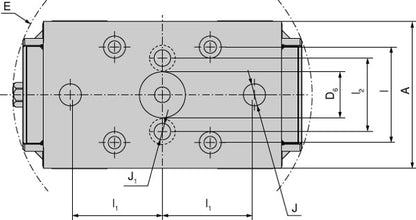

A 3.1496 inch 80 mm
B 0 - 59 mm
B1 B1 4 - 63 mm
B2 B2 59 - 117 mm
B3 B3 63 - 121 mm
C ±0.01 1.9685 inch 50 mm
D 1.1024 inch 28 mm
E 3.0709 inch 78 mm
F 5.1181 inch 130 mm
H 3.1890 inch 81 mm
Gmax. 6.1811 inch 157 mm
Drive size DRVS/SW 0.4724 inch 12 mm
D6 D6 H6 0.9843 inch 25 mm
Clamping force maximum MXC/Clamping force 25 kN

Application & Properties:

,
