Ceratizit ZSG-4.ZS.WB.G.80.190 8087808300 (0650381)


Price:
Sale price$1,014.82
Stock:
Re-stocking soon

Description

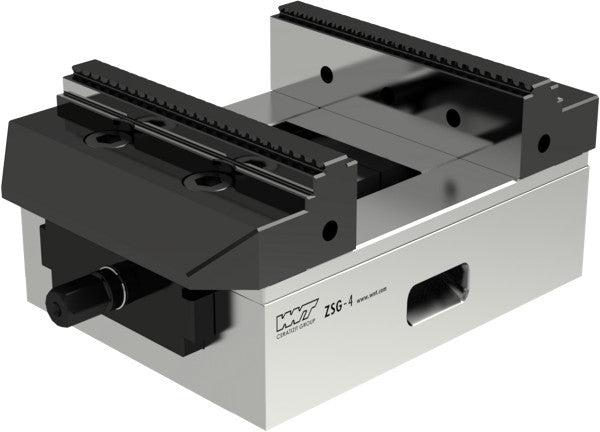

ZSG-4.ZS.WB.G.80.190 CENTRIC VICE WITH GRIP JAWS with 2 reversible grip jaws ball bearing mounted spindle ±0.01 mm repeatability

Mat No: 8088438000, Article No: 80884380

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

ZSG is a modular workholding system

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit ZSG-4.ZS.WB.G.80.190 8087808300 (0650381)
EDP # 0650381
Primary Units Metric / Millimeters
Weight 88.2 oz 2500 g

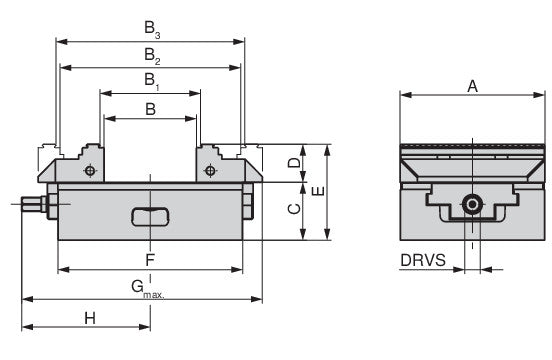

A 3.1496062992125986 inch 80 mm
B 0 - 123
B1 B1 4 - 127
B2 B2 59 - 181
B3 B3 63 - 185
C ±0.01 1.968503937007874 inch 50 mm
D 1.1023622047244095 inch 28 mm
E 3.070866141732284 inch 78 mm
F 7.480314960629921 inch 190 mm
H 4.094488188976378 inch 104 mm
G max. Gmax. 8.11023622047244 inch 206 mm
Drive size DRVS/SW 0.4724 inch 12 mm
D6 D6 H6 0.984251968503937 inch 25 mm
Clamping force maximum MXC/Clamping force 25 kN
