Description
ZSG-4.K.250.156.70 SQUARE CONSOLE
Mat No: 8087854100, Article No: 8087854100
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

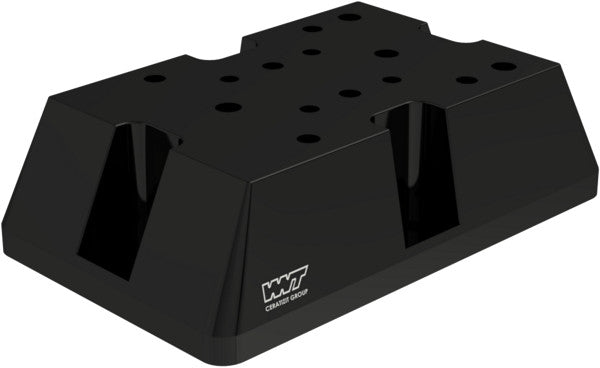

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT ZSG-4.K.250.156.70 SQUARE CONSOLE 8087854100 (0650395) | |
| EDP # | 0650395 | |
| Weight | 0.1 oz | 3.0 g |

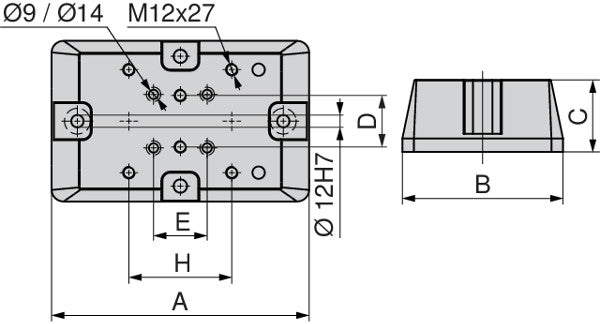

| A | 9.8425 inch | 250 mm |
| B | 6.1417 inch | 156 mm |
| C | 2.7559 inch | 70 mm |
| D | 1.9685 inch | 50 mm |
| E | 2.0472 inch | 52 mm |
| H | 3.9370 inch | 100 mm |
| for | ZSG 4 - 80 L = 130 mm + 190 mm / ZSG 4 - 125 L = 160 mm | |
| Designation | ZSG-4.K.250.156.70 | |
Application & Properties:
